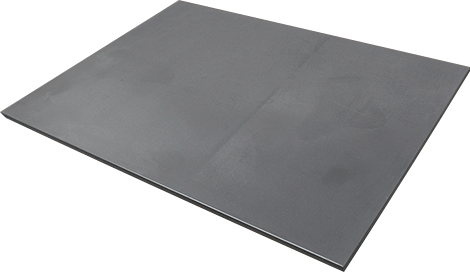

Silicon Carbide Batts, Plates, Tiles and Shelves

A flat, rigid product which carries and supports ware as it passes through the kiln or furnace. Made from Silicon Carbide, these batts are suitable for applications involving higher loads and temperatures, as well as applications requiring thinner and lighter batts.

IPS Ceramics also offers cordierite batts, plates, tiles and shelves for applications involving lower temperatures, weights and pressures.

General Overview

Batts (otherwise known as plates, tiles or shelves) are used as a basic support element in most kiln and furnace structures, forming a flat, rigid surface which carries the ware during firing, sintering or heat treatment. Flat, strong, and dependable, they are used throughout the ceramic industry for a range of applications (including biscuit, decorative and glost firings for tableware and sanitaryware manufacturers, as well as many other applications and industries).

Compared to traditional cordierite batts, silicon carbide batts are suitable for applications involving higher temperatures and heavier loads. They can also be specified for applications which require thinner batts for weight and energy saving purposes, reducing their mass and energy consumption.

Technical Information

Typical Physical Properties
OSiC (Oxide Bonded) NSiC (Fine Nitride Bonded) NSiC (Coarse Nitride Bonded) Recrystalised (RSiC)
Max Usage Temp. 1400 °C / 2550 °F 1450 °C / 2650 °F 1450 °C / 2650 °F 1650 °C / 3000 °F
Bulk Density 2.7 g/cm³ 2.8 g/cm³ 2.7 g/cm³ 2.7 g/cm³
Open Porosity 8 % 13 % 15 % 15 %
MoR @ Room Temp. 30 MPa 160 MPa 35 MPa 90 MPa
Thermal Conductivity 15 W/mK 15 W/mK 15 W/mK 25 W/mK
Thermal Expansion 20-1000°C 4.5 x10-6/K 4.7 x10-6/K 4.7 x10-6/K 4.8 x10-6/K
Composition
SiC2 >85 % 75 % 70 % >99 %
Si3N4 25 % 20 %
SiO2 10%
All figures are typical figures determined using laboratory test pieces and might not always be an accurate representation of production item.
