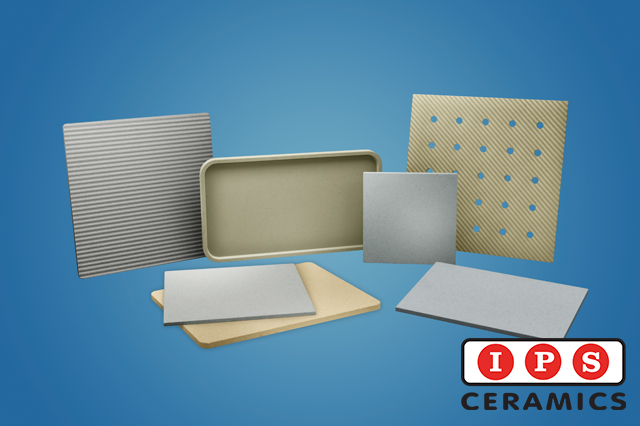

Kiln Batts, Plates, Tiles and Shelves
They are typically made using large, high-capacity hydraulic presses with hardened steel moulds to give a product that is flat and uniform to tight tolerances. We also manufacture extruded batts (for heavy loads, helping to reduce refractory mass and energy consumption) and cast batts (for use in roller kilns, providing a clean and dust-free surface).
Kiln shelves have many variations in either size, shape, material or all these combining factors. They can be made from cordierite, high alumina, silicon carbide, or nitride bonded silicon carbide.
Types of Kiln Shelves, Batts, Plates and Tiles from IPS Ceramics

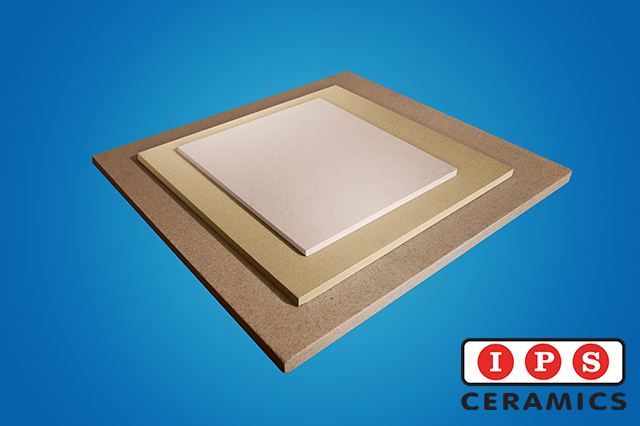

Plain Batts, Plates, Tiles and Shelves
Cordierite Batts, Plates, Tiles and Shelves are a core component of most kiln systems – flat, strong, and dependable. They are used throughout the ceramic industry, including biscuit, decoration and glost firings for tableware.

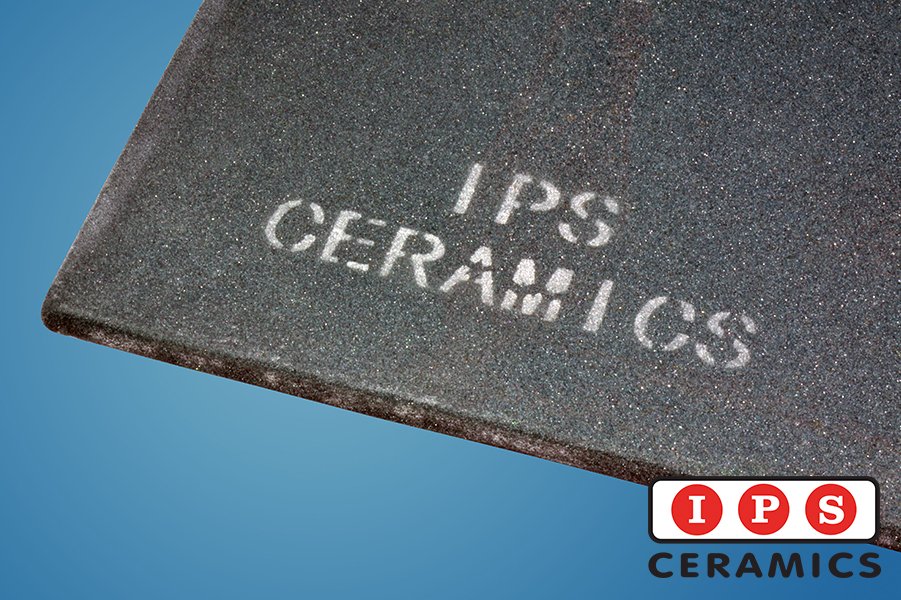

Silicon Carbide Batts, Plates, Tiles and Shelves
IPS Ceramics’ Silicon Carbide Batts, Plates, Tiles and Shelves are used in applications involving higher temperatures or heavier loads than would be suitable for cordierite products, or applications where weight/energy saving is required.

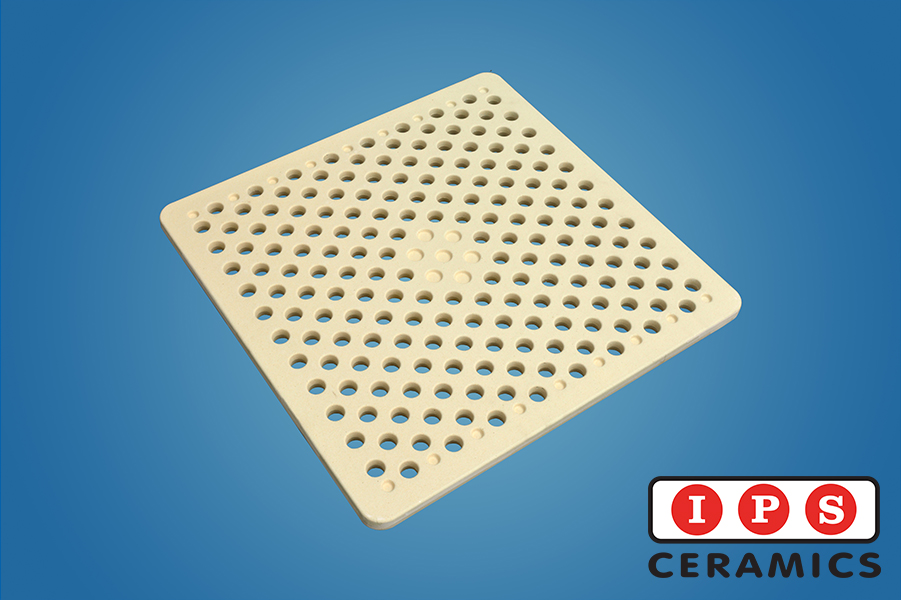

Feature Batts, Plates, Tiles and Shelves
Our Batts, Plates, Tiles and Shelves can be manufactured with additional features such as holes, grooves, slots, and recesses. These features typically provide extra functionality such as location-points, thermal breaks, or weight reduction.

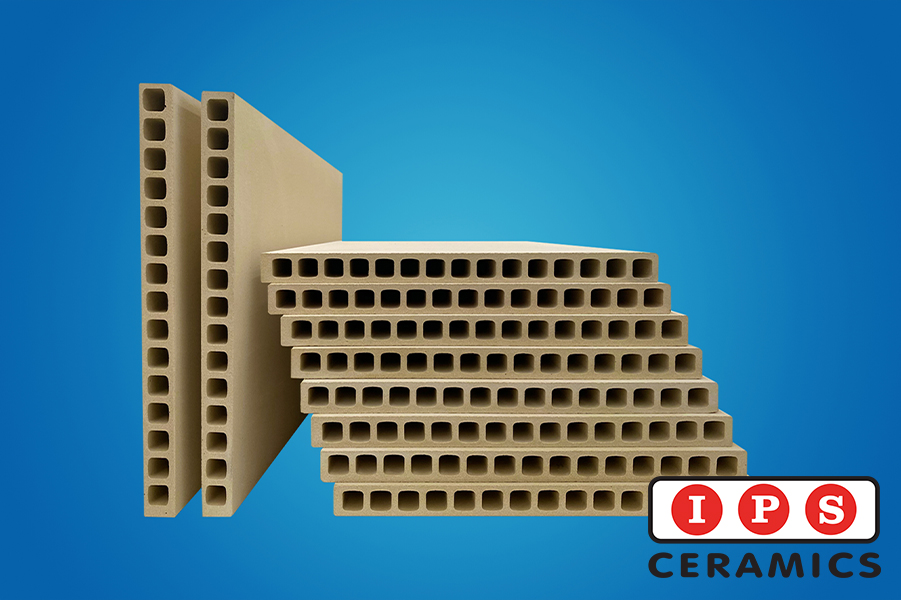

Extruded Batts, Plates, Tiles and Shelves
Extruded Batts, Plates, Tiles and Shelves are strong batts with channels running through the centre to reduce weight and energy consumption. They range from 16 mm to 48mm and have traditionally been used for applications involving extremely heavy loads (such as sanitaryware manufacture). They can be manufactured in larger sizes than pressed batts; these are usually used by industries such as the glass industry. Versions with thinner walls are also available.
Cast Batts, Plates, Tiles and Shelves
Cast Cordierite Batts, Plates, Tiles and Shelves are smoother and harder skinned than traditional batts made by hydraulic pressing. They are often used in roller kilns where the harder surface resists abrasion from kiln rollers, reducing kiln dirt and roller build-up. More details are available on our Feature Batt page.

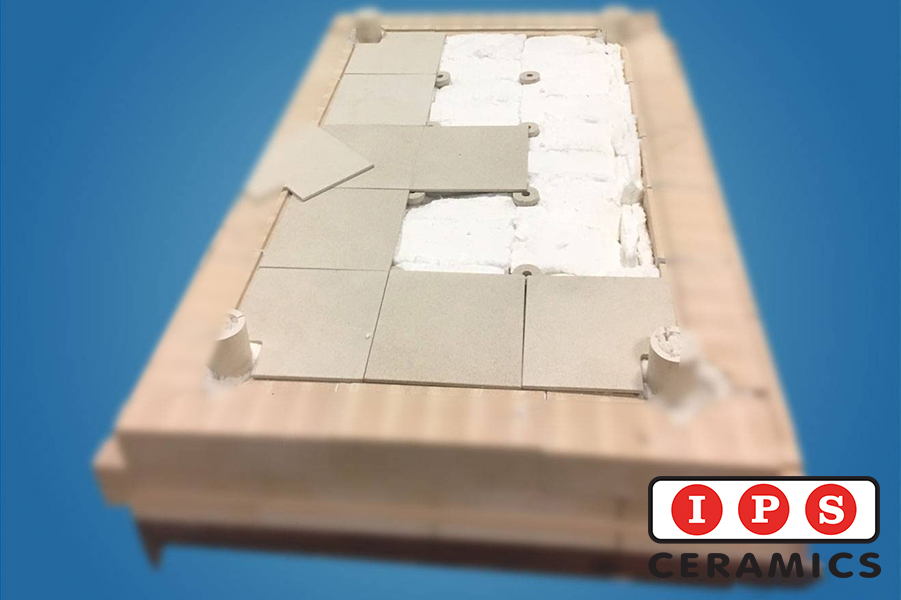

Cover Batts, Plates, Tiles and Shelves
Cover Batts, Plates, Tiles and Shelves are thin batts that are used to retain ceramic fibre used in kiln car bases or kiln walls. These batts provide a rigid surface that protects the soft fibre from the high velocity gas flows found in industrial gas kilns, significantly reducing kiln dirt and improving yields. They are also available in a lightweight, energy saving material. More details are available on our Kiln Car Structure page.

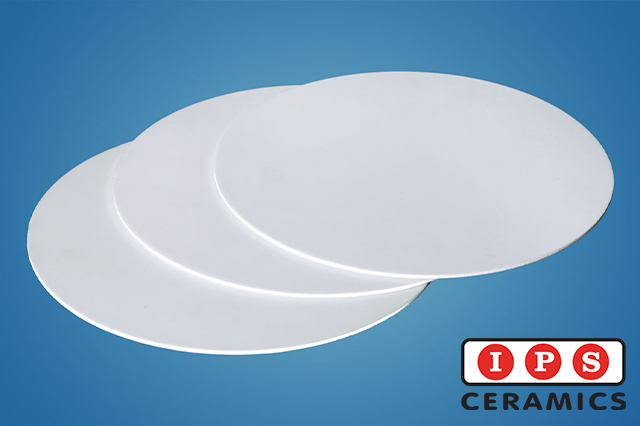

Alumina Discs, Plates and Tiles
Alumina discs, plates and tiles are used to support products during heat treatment processes. They are shaped to match the product.
