Cordierite Ceramic Tubes and Posts

IPS Ceramics’ cordierite ceramic tubes and posts are used in a wide range of furnace and kiln applications.

Our tubes and posts are available in a wide range of sizes which can be customised to fit your exact requirements.

  • Excellent thermal properties
  • Available in a wide range of sizes and shapes
  • Can be cut to bespoke lengths

General Overview

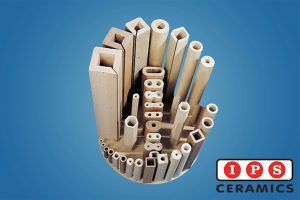

IPS Ceramics offers a very wide range of cordierite ceramic tubes in differing shapes and sizes ranging from 25mm dia up to 200mm square. Cordierite’s excellent thermal properties, capable of withstanding the high temperatures of commercial pottery production and industrial processes, mean that these tubes are often used in many kiln and furnace applications.

Tubes are cut to length after firing to suit the customer’s kiln car design. Typical lengths range from 12.7mm to 700mm depending upon the diameter/size. Longer tubes with larger diameters are also available.

Technical Information

General Information
Max Usage Temp.1300 °C / 2372 °F
Bulk Density2.00 g/cm³
Apparent Porosity26 %
MoR @ 20°C11 MPa
MoR @ 1250°C12 MPa
CTE 20 – 1000 °C2.4 x10-6/K
Specific Heat @ 20°C1.0 kJ/kg.K
Typical Chemical Analysis
Al2O347 %
SiO244 %
MgO6.5 %
All figures are typical figures determined using laboratory test pieces and might not always be an accurate representation of production item.
